Custom Retrofit Kit
Energy efficient LED light engine offers high lumen output as well as high efficacy
Custom mounting plate and accessory options customized to your exact needs

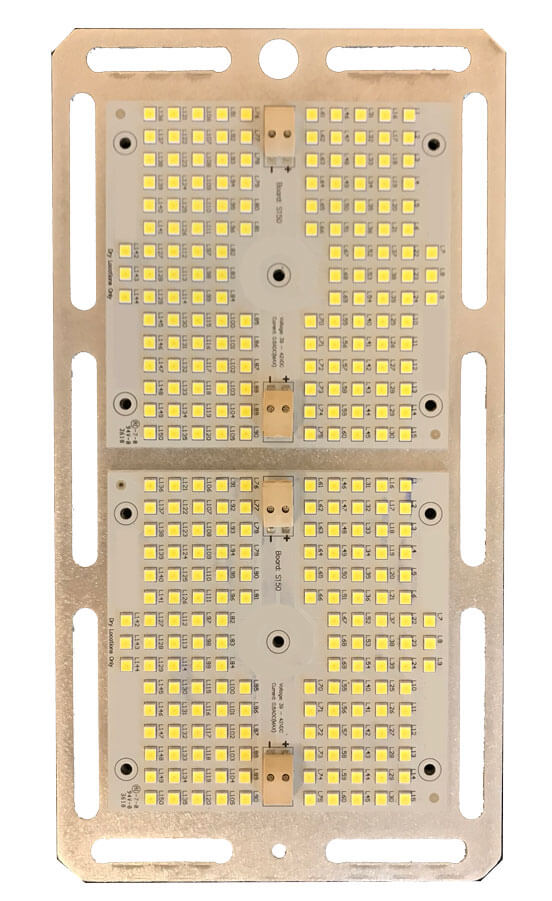

Compact and optimized LED board for concentrated and powerful lighting distribution
Three color temperatures available. (5000K, 4000K & 3000K)
5 Year Warranty
Create custom LED lighting options for any of your fixture requirements. Retro kits place our high lumen and energey efficiant LED light engines on custom plates with a multitude of accessory options. We will design and create a custom mounting plate for your particular fixture providing a custom LED retrofit package for your existing application.
Additional information
| Lumens | 10450 |
|---|---|
| Watts | 60 |
| Lumens per Watt | 154.1 |
| Light Engine | Two S150 board |
| I70 Lifetime | 100, 000 hours |
| CRI | 80 |
| CCT | 5000K 4000K 3000K |
| Operating Enviornment | -40C to +50C ambient, non-condensing |
| IP Rating | N/A |
| Optical Distribution | 120 degrees |
| Voltage | 120 – 277VAC |
| Finish | Aluminium |
| Mounting | Customer Dependent |
| Dimming | 0-10VDC |
| Power Factor | >0.90 |
| THD | <20% |
| Warranty | Standard limited 5-year warranty. Optional 10-year warranty available. Contact LLT for more details. |
