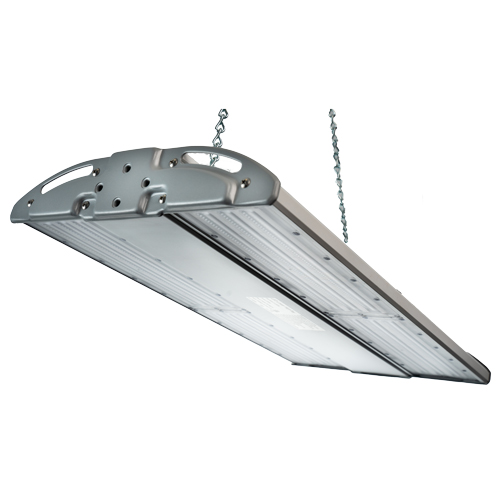

LED Linear High Bay Pro

LED Linear High Bay Pro offers a high lumen package at 160lm/W. This durable light is constructed of a sheet steel housing with a frosted lens and operates within a wide range of input voltage, 120-277 VAC or 200-480 VAC, using a reliable Meanwell driver, capable of 0-10V dimming. This fixture is easy to install using a wall mount bracket or suspension chains. The LED Linear High Bay Pro is an ideal one-to-one replacement for conventional HID and T8/T5 fluorescent lighting systems in large indoor spaces, including manufacturing, warehousing, commercial, and gymnasium applications with mounting heights ranging from 10 ft to 45 ft.

  • Saves 45% energy compared with HID
  • High-output LEDs and optics
  • Uniform light levels for visual comfort
  • Easy to maintain
  • Flexible mounting option
  • Designed for easy replacement of light engines and drivers
  • Flexibility in design and installation

Download Data Sheet

Additional information

Weight 100 lbs
Lumens

16000, 19200, 32000, 48000

Watts

100W, 120W, 200W, 300W

Lumens per Watt

160

CCT

Cool White (5000K), Natural White (4000K), Warm White (3000K)

Operating Enviornment

-35¡C to 50¡C

IP Rating

IP65

Optical Distribution

60¡ / 120¡ Viewing Angle

Voltage

120 – 277VAC, 50/60 Hz, 200-480V AC (optional)

Finish

Sheet Steel Housing

Mounting

Suspended Chain Mount, Wall/ceiling mount (angle adjustable)

Dimensions

100W: 15.36" x 13.78" x 6.70" 200W: 24.41" x 15.36" x 6.70" 400W: 47.25" x 1.3" x 1.38"

Weight

100W: 9.7 lbs. 200W: 15.44 lbs. 400W: 29.77 lbs.

Warranty

5 Year Standard Warranty Limited
